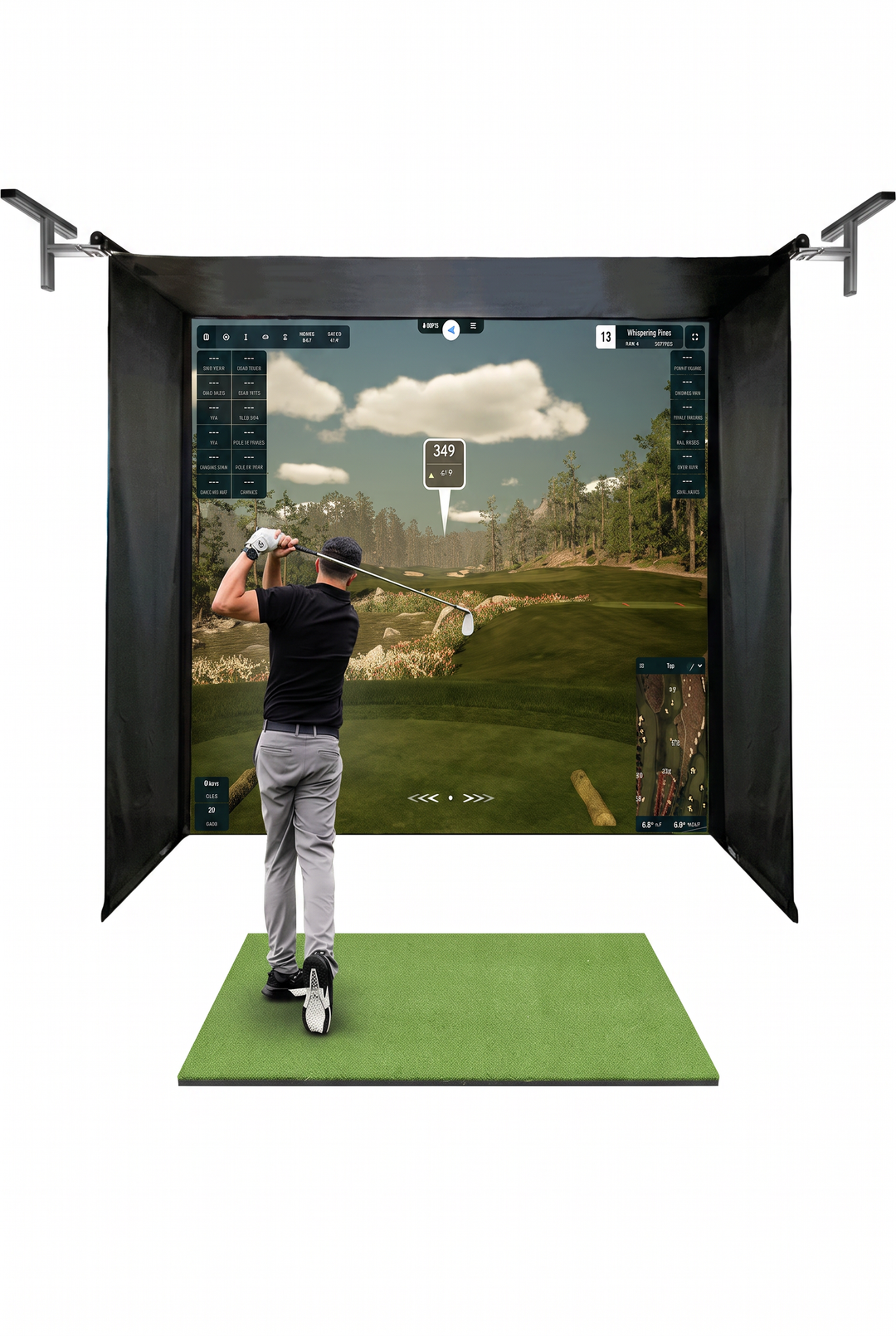

SportScreen Vanish Series Golf Simulator Impact Screen

The Vanish Series uses a tensioned, tightly woven fabric construction that significantly reduces visible wrinkles compared to standard impact screens. It also features a high-gain projection surface, a reinforced impact layer for quieter ball contact, and a built-in retraction system — none of which are standard on basic screens.

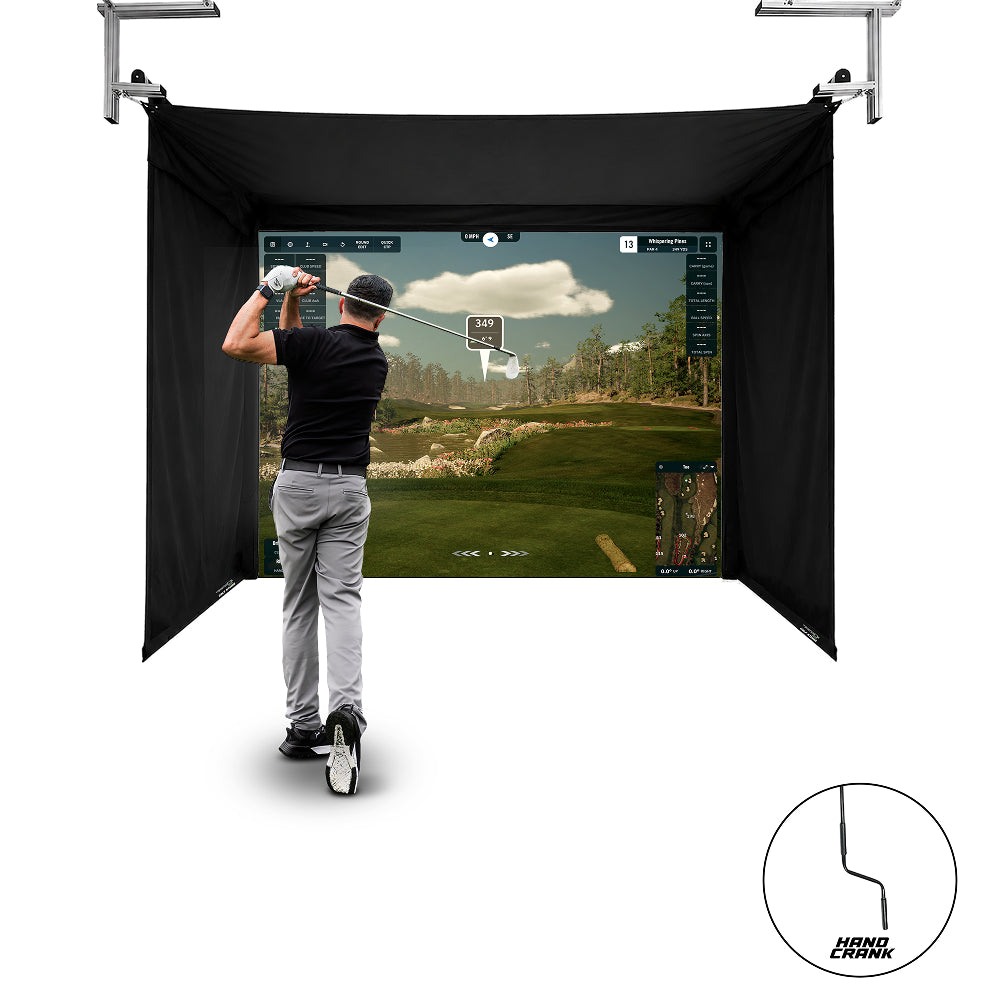

Both options allow you to retract the screen when not in use. The hand crank is manually operated and does not require a power connection. The remote control model is motorized and raises or lowers the screen at the press of a button — ideal for frequent use or commercial settings. The remote control option requires access to a power source at the installation location.

Select the size that matches your room width and ceiling height. The Vanish 9 and Vanish 11 are suited for standard home simulator bays. The Vanish 13H, Vanish 16, and Vanish 16H are designed for wider or taller spaces. If you are unsure, measure your available wall width and ceiling clearance and contact our team — we are happy to help you choose the right fit.

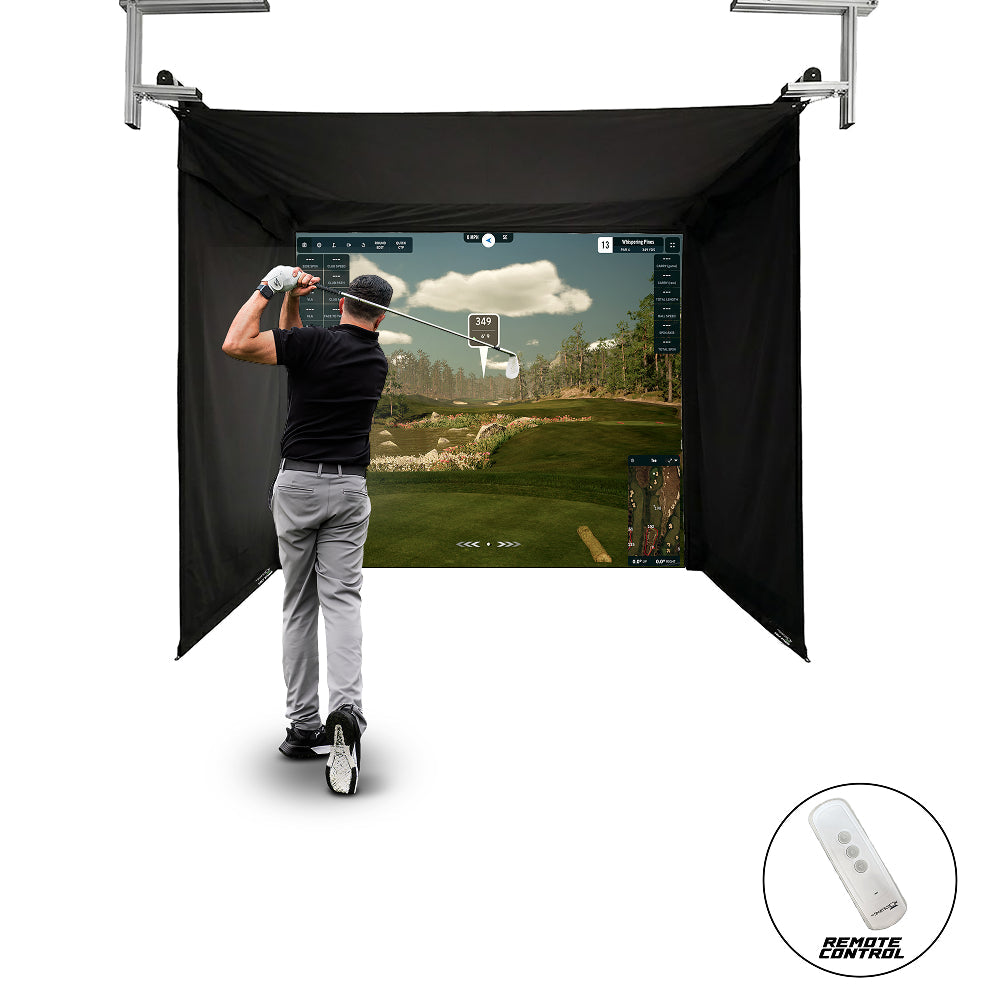

Vanish 9
Width: 2.3 m (7'9" ft)
Min Height: Adjustable
Max Height: 2.6 m (8'6" ft)
Depth: 1.5 m (5'0" ft)
Screen Ratio: 1:1

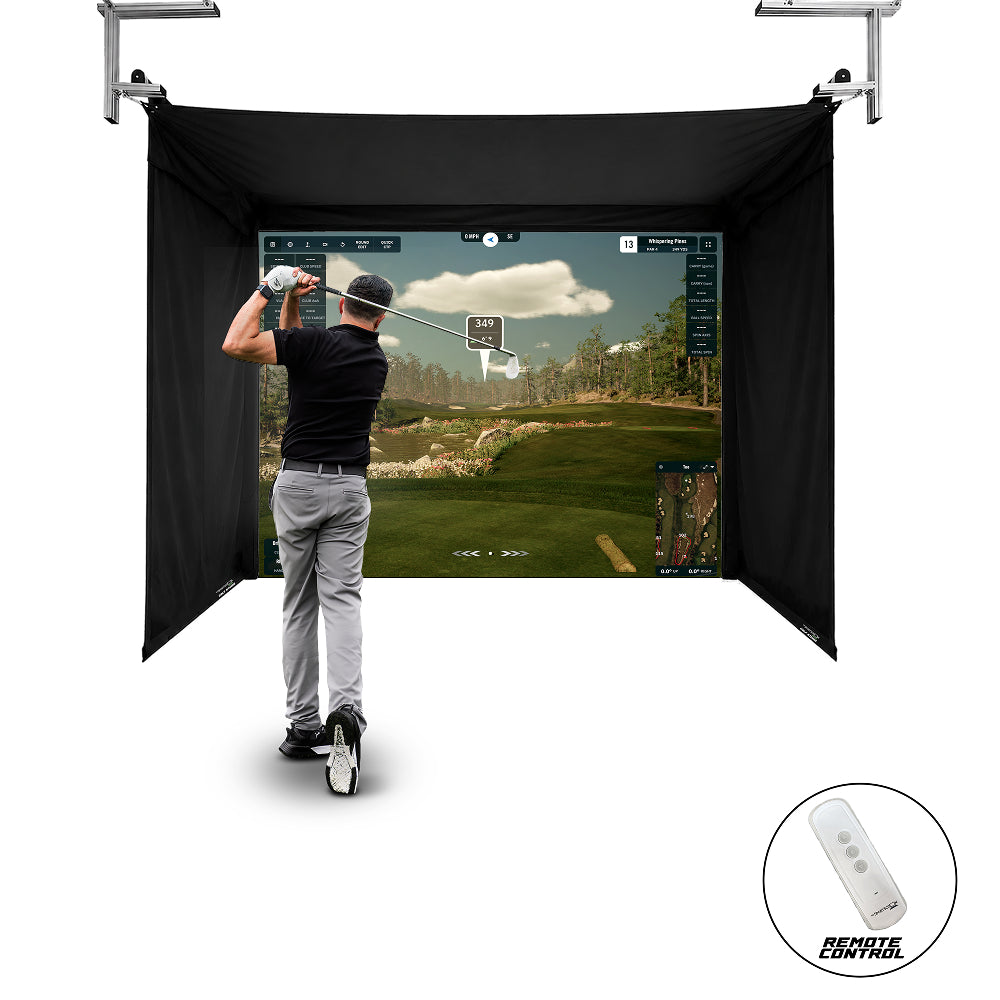

Vanish 11
Width: 3.1 m (10'3" ft)
Min Height: Adjustable
Max Height: 2.6 m (8'6" ft)
Depth: 1.5 m (5'0" ft)
Screen Ratio: 4:3

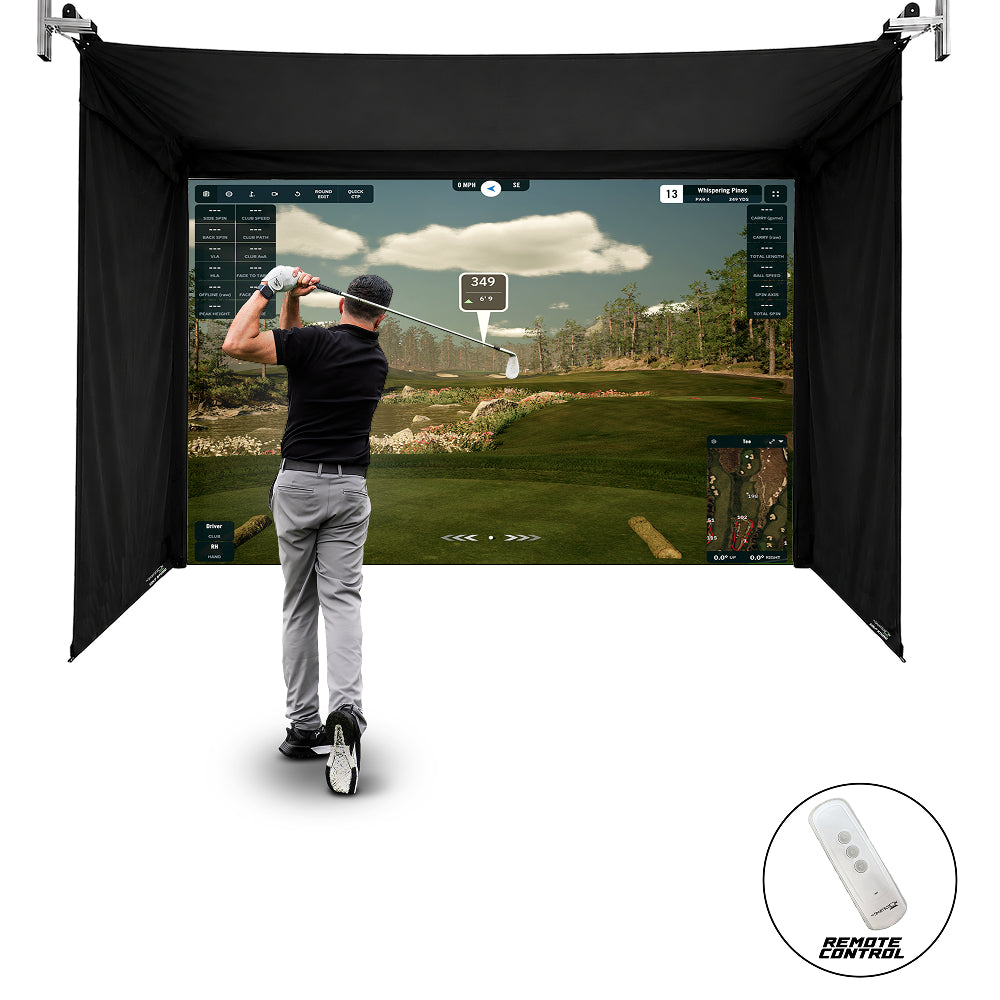

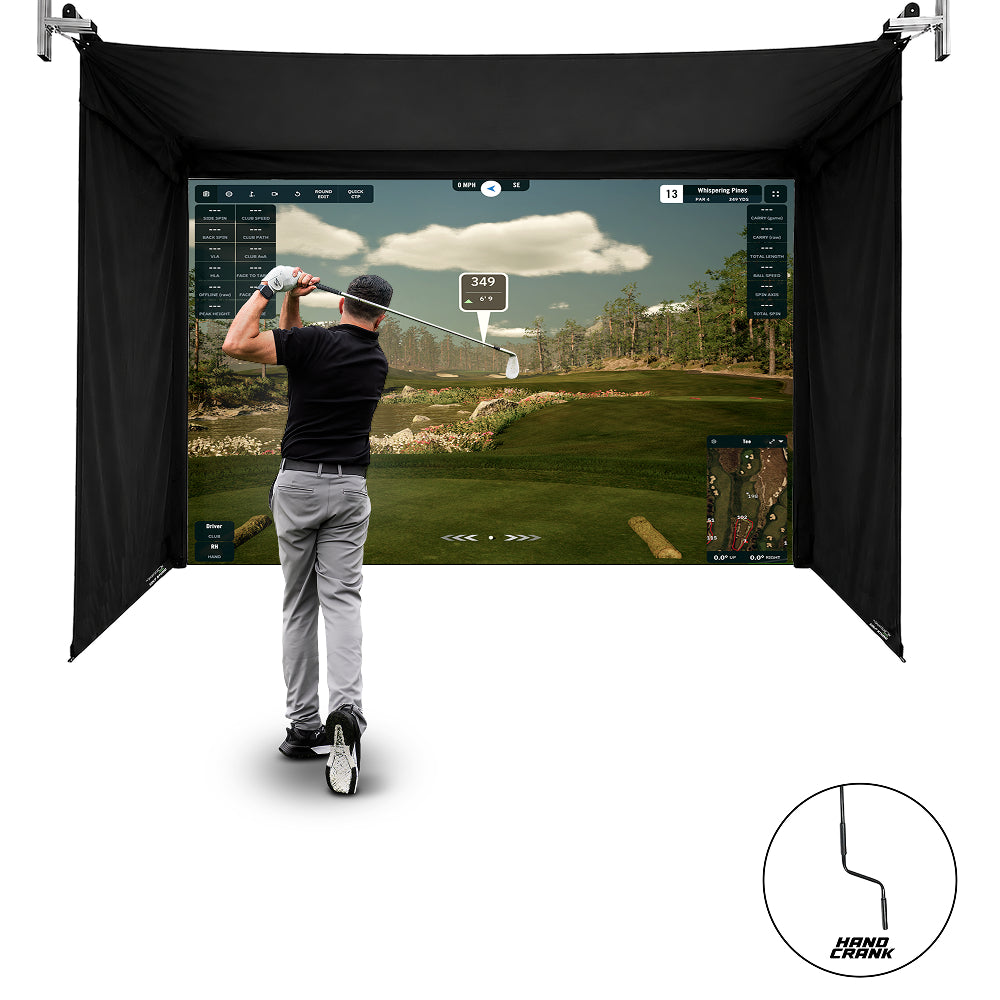

Vanish 13H
Width: 3.7 m (12'3" ft)
Min Height: Adjustable
Max Height: 3 m (9'11" ft)
Depth: 1.5 m (5'0" ft)
Screen Ratio: 4:3

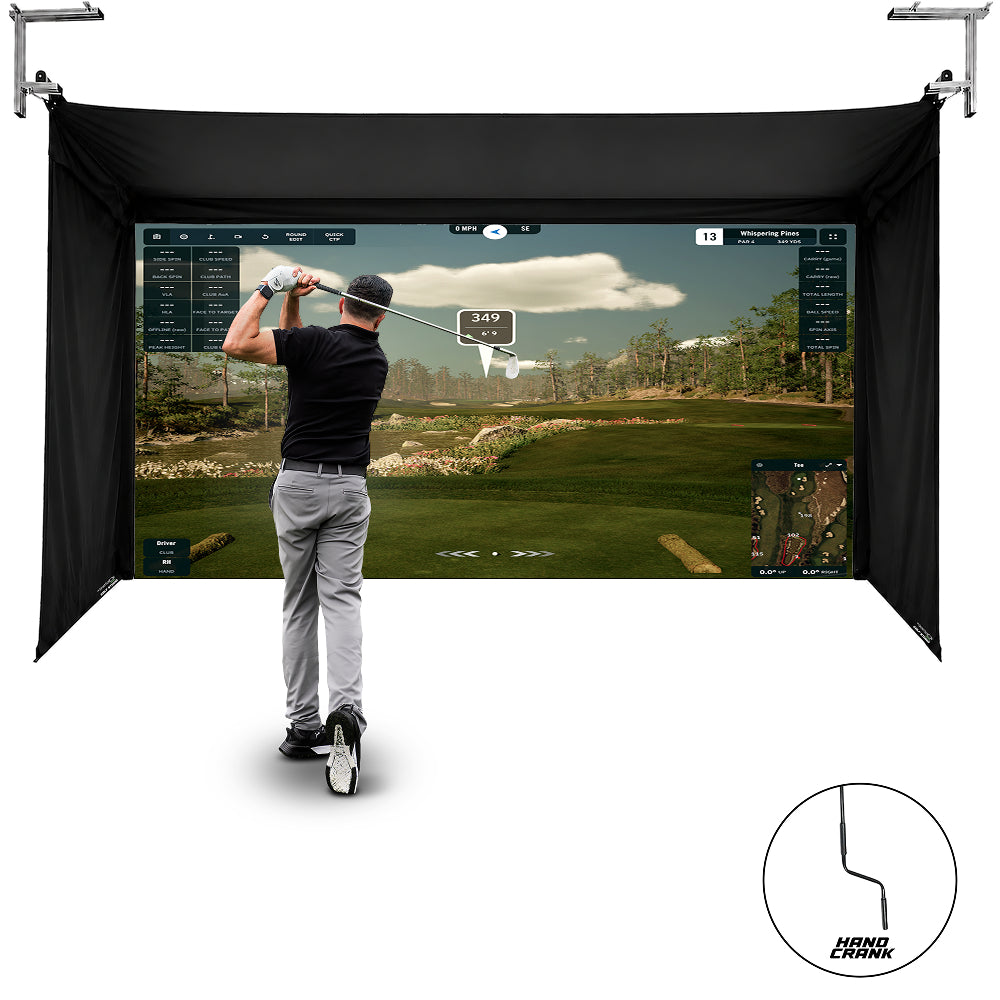

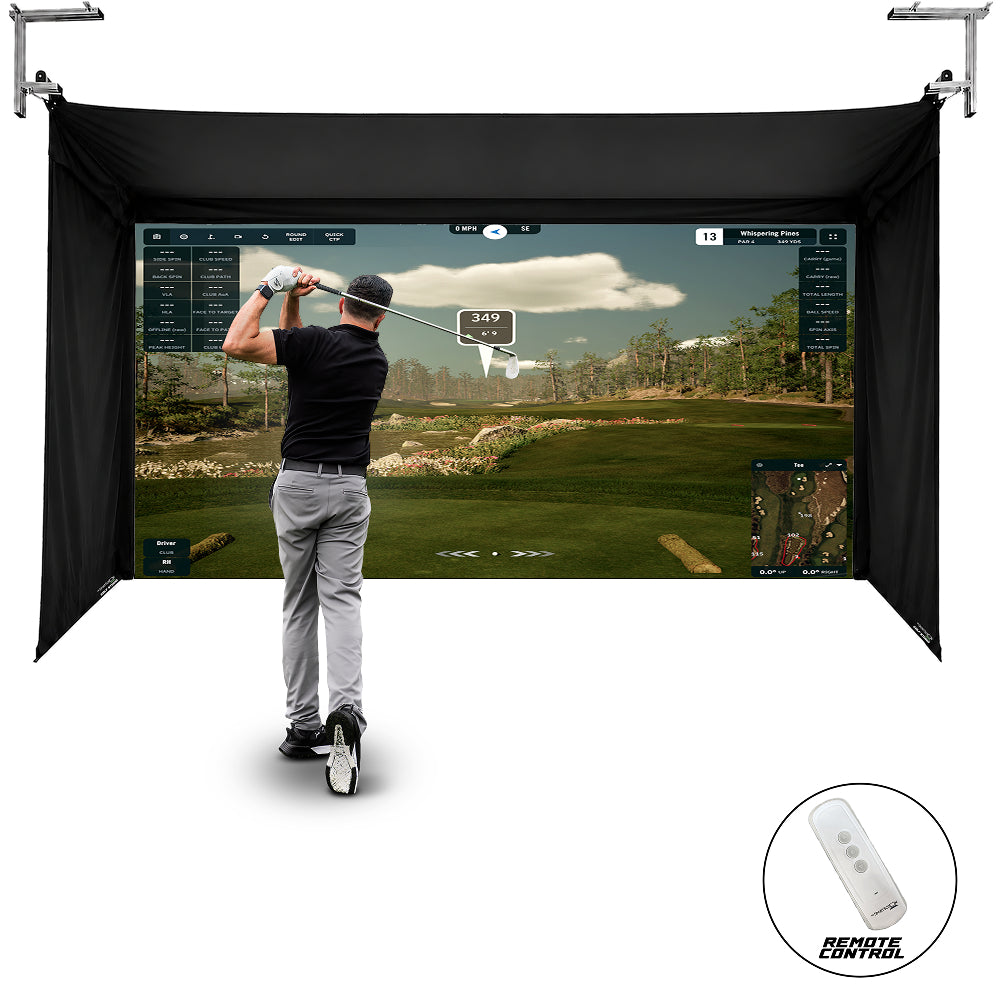

Vanish 16
Width: 4.7 m (15'6" ft)
Min Height: Adjustable
Max Height: 2.6 m (8'6" ft)
Depth: 1.5 m (5'0" ft)
Screen Ratio: 16:9

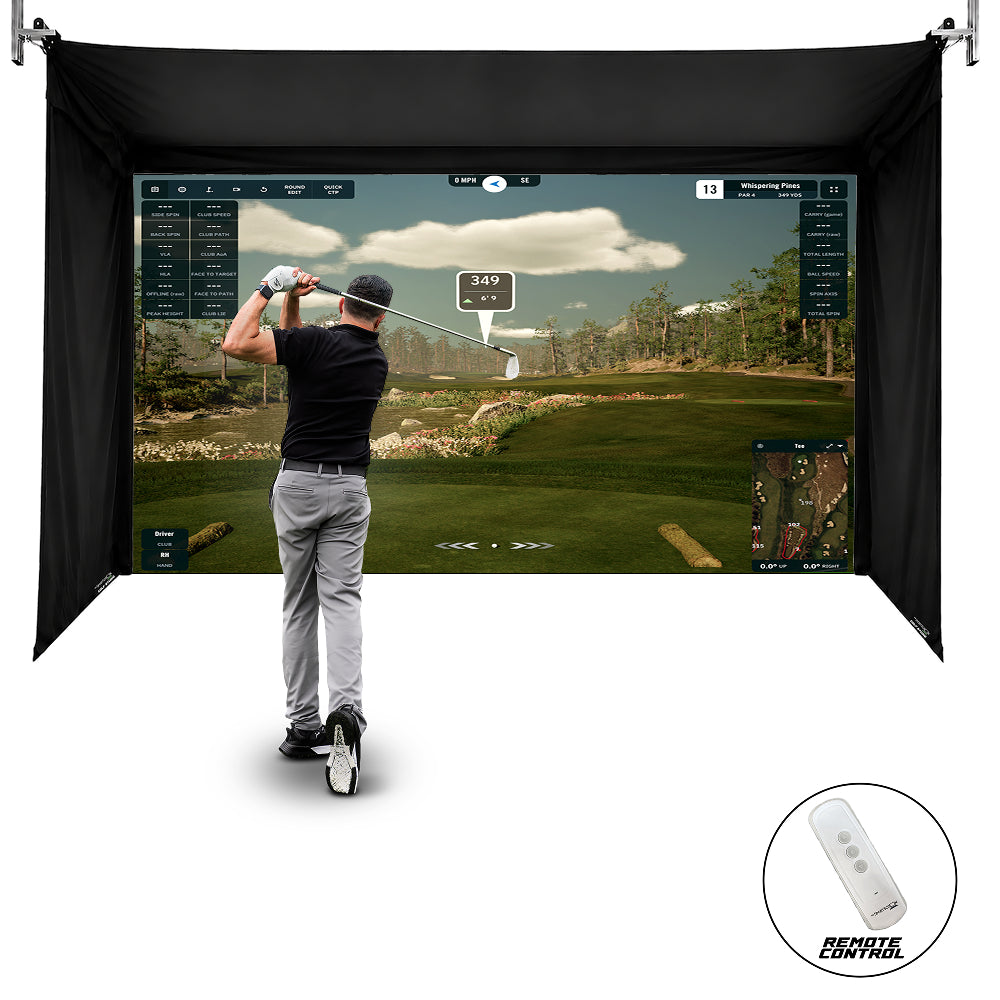

Vanish 16H
Width: 4.7 m (15'6" ft)
Min Height: Adjustable
Max Height: 3 m (9'11" ft)
Depth: 1.5 m (5'0" ft)
Screen Ratio: 16:9

Please leave at least 30 cm behind and 20 cm to the side of the enclosure.

Yes. The Vanish Series projection surface is compatible with both standard-throw and short-throw projectors. For best results, follow your projector manufacturer's recommended throw distance and brightness settings for the screen size you select.

Yes. The screen is software-agnostic and works with any simulator platform, including GSPro, E6 Connect, TGC 2019, Awesome Golf, and others. Software compatibility depends on your launch monitor and projector setup, not the screen itself.

Many customers complete installation without professional help. The screen includes reinforced attachment points and a retraction mechanism designed for straightforward mounting. For permanent or commercial installations, professional installation is recommended to ensure proper alignment, tensioning, and electrical connection for remote control models.

Wipe the surface gently with a dry or lightly damp cloth. Avoid harsh chemicals, abrasive cleaners, or pressure washing. When retracting for storage, allow the screen to retract smoothly — do not force or fold the fabric.
